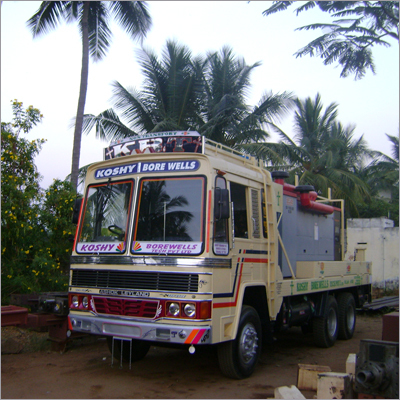

Drilling Rig Equipment

1 INR/Unit

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Drilling Rig Equipment Price And Quantity

Price 1 INR/Unit
Minimum Order Quantity 1 Unit

Drilling Rig Equipment Trade Information

Supply Ability 1 Unit Per Month
Delivery Time 1 Months

Product Description

Supplying a quality grade of Drilling Rig Equipment. Equipped with effective down the hole hammer, these equipments are perfectly suitable for drilling and counter boring purposes. Our dexterous workforce manufactures these equipments, using finest quality materials, which we source from the most trusted vendors of the market. The clients can obtain our Drilling Rig Equipment in different customized specifications as to suit their requirements.

Features:

Sturdy construction
High performance
Longer functional life

SHE-BXL SEMI AUTOMATIC DRILL ROD CHANGER
Depth	400 Mtrs
Diameter	6 1/2" Drill to 8 1/2"
Prime Mover	On suitable truck mounted rig with power from truck engine through transmission gear box
Mast
Type	Structural type
Capacity	18 ton to 25 tons
Height	8.6 mtrs
Rod Handling Capacity	6.1 mtr (20 feet)
Jacks	Box type hydraulic jacks 4 Nos
Feed Cylinder & Wire Rope	1:3 Ratio
Drill Rotary Head	3:1 Gear box
Motor	OMV 315/400
Rotary Spindle	0 to 160 rpm
Drill Rod Changing	Electrical Push Button Operating System Rod changing operation done by remote control
Feed Cylinder Capacity	140*2350
Pump	50+50 GPM
Max.Load Lifting	9100 KG
Compressor	CFM/PSI 1100/330
Max.Pull Up Speed Max.Pull In Speed	20 ft/10 sec 20 ft/7 sec
Max.Torque	24450 lb-in
Water Pump P-56 * Type Working Pressure Flow Rate	Triplex reciprocating pump 110 Bar 106 Lpm
Water Pump P-76 * Type Working Pressure Flow Rate	Triplex reciprocating pump 180 Bar 150 Lpm
Welding Machine *	220 Amps,250 Amps, 300 Amps
Hammer Dismantler *	Hydraulic type
