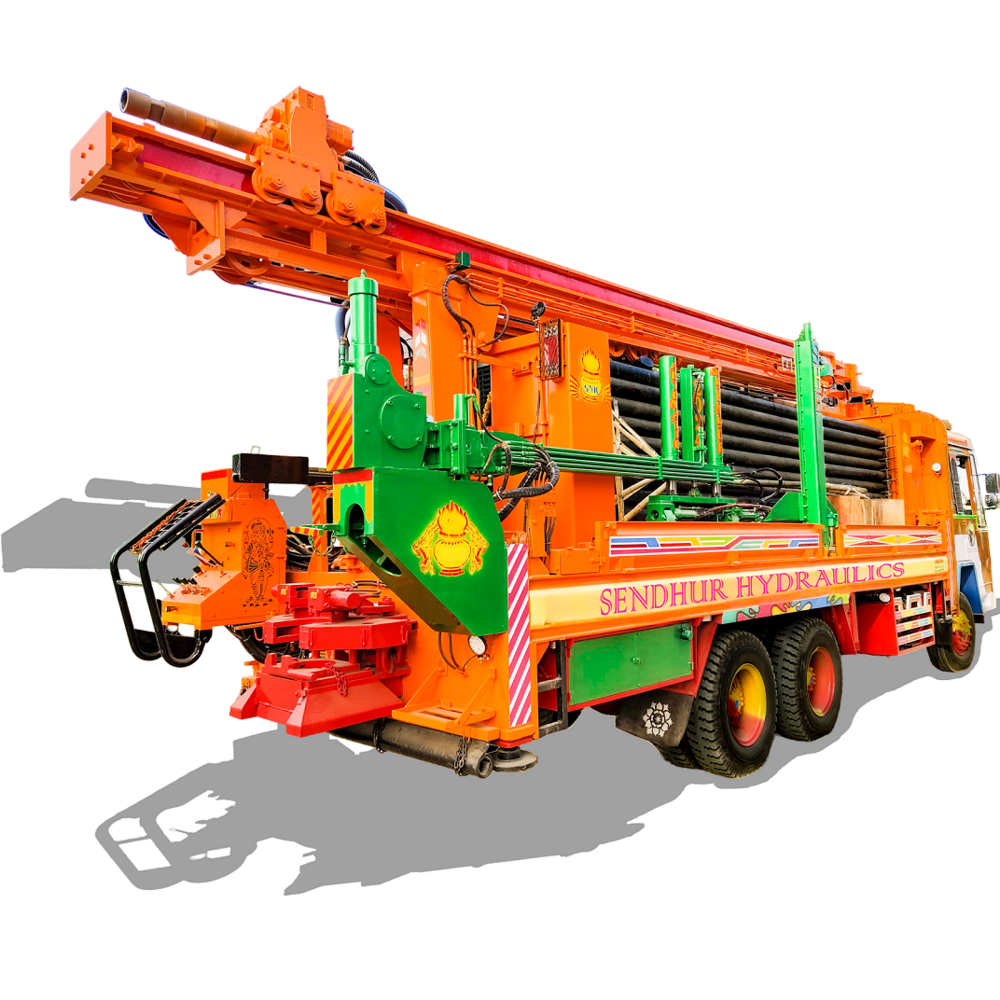

Bore Well Drilling Machine

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Bore Well Drilling Machine Price And Quantity

Minimum Order Quantity 1 Unit

Bore Well Drilling Machine Trade Information

Supply Ability 1 Unit Per Month
Delivery Time 1 Months
Main Domestic Market All India

Product Description

We are assisted by a well-managed infrastructure that helps us to manufacture and supply a quality grade of Bore Well Drilling Machine. These machines are manufactured at our production unit, using high quality materials. The clients can obtain our machines in different working and power capacities as per their requirements. To provide a defect free range, these machines are checked on certain quality parameters. We offer our Bore Well Drilling Machine at the cost effective price to the clients.

Features:

Long service life
Easy operations
Efficient performance

SHE-XL MANUAL TYPE ROD CHANGER
Depth	600 Mtrs
Diameter	6 1/2" Drill To 8 1/2"
Prime Mover	On Suitable Truck Mounted Rig With Power From Truck Engine Through Transmission Gear Box
Mast
Type	Structural Type
Capacity	18 Ton To 25 Tons
Height	8.6 Mtrs
Rod Handling Capacity	6.1 Mtr (20 Feet)
Jacks	Box Type Hydraulic Jacks 4 Nos
Feed Cylinder & Wire Rope	1:3 Ratio
Drill Rotary Head	3:1 Gear Box
Motor	Omv 315/400
Rotary Spindle	0 To 160 Rpm
Drill Rod Changing	Single Rod Manual
Feed Cylinder Capacity	250*2350
Pump	65+65 Gpm
Max.Load Lifting	150000 Kg
Compressor	Cfm/Psi 1400/350
Max.Pull Up Speed Max.Pull In Speed	20 Ft/16 Sec 20 Ft/10 Sec
Max.Torque	48900 Lb-In
Water Pump P-56 * Type Working Pressure Flow Rate	Triplex Reciprocating Pump 110 Bar 106 Lpm
Water Pump P-76 * Type Working Pressure Flow Rate	Triplex Reciprocating Pump 180 Bar 150 Lpm
Welding Machine *	220 Amps,250 Amps, 300 Amps
Hammer Dismantler *	Hydraulic Type
